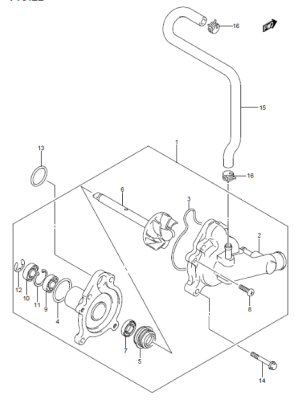

WATER PUMP AN650 2013-17

WATER PUMP AN650 2013-17

SKU: SKU22558
WATER PUMP AN 650 2013-17

OR
1 17400-10G10 PUMP ASSY, WATER 1
2 17411-10G10 .COVER 1
3 17418-10G10 .O RING 1
4 17435-33400 .O RING 1
5 17470-02F10 .SEAL, WATER PUMP SHAFT 1
6 17491-10G10 .IMPELLER 1
7 09283-10004 .OIL SEAL (10X21X5) 1
8 02112-0616B .SCREW
9 08110-68000 .BEARING 1
10 08110-69000 .BEARING 1
11 08331-41209 .CIRCLIP 1
12 08332-1108A .E RING 1
13 09280-22001 O RING (D:2.4,ID:21.8) 1
14 01547-0635A BOLT
15 17856-10G00 HOSE, WATER BYPASS 1
16 09401-12409 CLAMP
    • SKU
      SKU22558
    • Weight
      1.5 lbs
    • Dimensions (L x W x H)
      10 x 5 x 5 inches
  • OPTION
    1 17400-10G10 PUMP ASSY, WATER 1, 2 17411-10G10 .COVER 1, 3 17418-10G10 .O RING 1, 4 17435-33400 .O RING 1, 5 17470-02F10 .SEAL, WATER PUMP SHAFT 1, 6 17491-10G10 .IMPELLER 1, 7 09283-10004 .OIL SEAL (10X21X5) 1, 8 02112-0616B .SCREW, 9 08110-68000 .BEARING 1, 10 08110-69000 .BEARING 1, 12 08332-1108A .E RING 1, 13 09280-22001 O RING (D:2.4,ID:21.8) 1, 14 01547-0635A BOLT, 15 17856-10G00 HOSE, WATER BYPASS 1, 16 09401-12414 CLAMP
