TURN SIGNAL SV650 2017-26

TURN SIGNAL SV650 2017-26

SKU: SKU22498

TURN SIGNAL SV 650 2017-26


OR

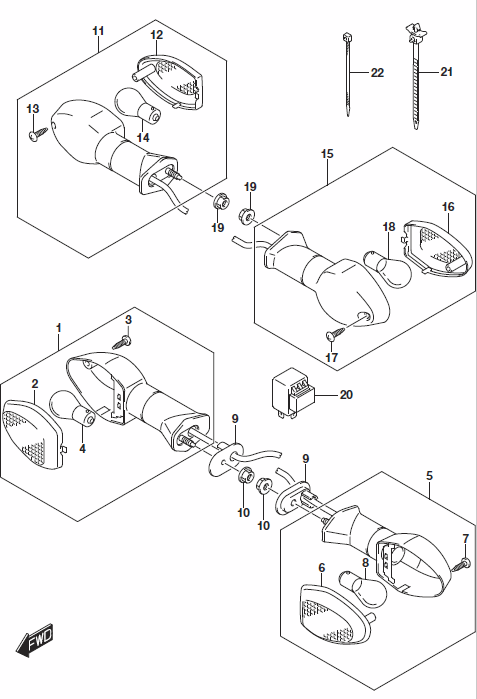

1 35601-08JB0 LAMP ASSY, FRONT TURNSIGNAL R 1

2 35612-08JA0 .LENS, RH 1

3 03211-0414B .SCREW 1

4 09471-12186 .BULB (12V,21W) 1

5 35602-08JB0 LAMP ASSY, FRONT TURNSIGNAL L 1

6 35632-08JA0 .LENS, LH 1

7 03211-0414B .SCREW

8 09471-12186 .BULB (12V,21W) 1

9 35629-31F40 PLATE, FRONT TURNSIGNAL

10 08316-1005A NUT

11 35603-08JB0 LAMP ASSY, REAR TURNSIGNAL RH 1

12 35632-08JA0 .LENS, RH 1

13 03211-0414B .SCREW 1

14 09471-12186 .BULB (12V,21W) 1

15 35604-08JB0 LAMP ASSY, REAR TURNSIGNAL LH 1

16 35612-08JA0 .LENS, LH 1

17 03211-0414B .SCREW 1

18 09471-12186 .BULB (12V,21W) 1

19 08316-1005A NUT

20 38610-06F00 RELAY ASSY, TURNSIGNAL LAMP 1

21 09407-14403 CLAMP (L:125) 1

22 09407-18402 CLAMP (L:165) 1

    • SKU
      SKU22498
    • Weight
      1.5 lbs
  • OPTION
    1 35601-08JB0 LAMP ASSY, FRONT TURNSIGNAL R 1, 2 35612-08JA0 .LENS, RH 1, 3 03211-0414B .SCREW 1, 4 09471-12186 .BULB (12V,21W) 1, 5 35602-08JB0 LAMP ASSY, FRONT TURNSIGNAL L 1, 6 35632-08JA0 .LENS, LH 1, 7 03211-0414B .SCREW, 8 09471-12186 .BULB (12V,21W) 1, 9 35629-31F40 PLATE, FRONT TURNSIGNAL, 10 08316-1005A NUT, 11 35603-08JB0 LAMP ASSY, REAR TURNSIGNAL RH 1, 12 35632-08JA0 .LENS, RH 1, 13 03211-0414B .SCREW 1, 14 09471-12186 .BULB (12V,21W) 1, 15 35604-08JB0 LAMP ASSY, REAR TURNSIGNAL LH 1, 16 35612-08JA0 .LENS, LH 1, 17 03211-0414B .SCREW 1, 18 09471-12186 .BULB (12V,21W) 1, 19 08316-1005A NUT, 20 38610-06F01 RELAY ASSY, TURNSIGNAL LAMP 1
