REAR WHEEL PARTS GSX-S1000 2016-20

REAR WHEEL PARTS GSX-S1000 2016-20

SKU: SKU22370

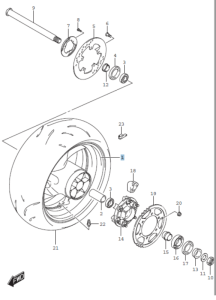

REAR WHEEL (RIM) PARTS GSX-S 1000 2016-20

OR
2 64731-35F10 SPACER, HUB BEARING 1
3 09262-28052 BEARING (28X52X12)
4 09284-37001 OIL SEAL (37X52X8) 1
5 69211-04K00 DISC, REAR BRAKE 1
6 09106-08160 BOLT (8X21)
7 64162-04K00 RING, SPEED SENSOR RR(50T) 1
8 07130-0512A BOLT
9 64711-49G30 AXLE, REAR 1
10 09159-25003 NUT
11 09160-25070 WASHER (25.2X42X3.2) 1
12 64741-35F00 SPACER, AXLE RH 1
13 64751-47H00 SPACER, AXLE LH 1
14 64610-04K00 DRUM, REAR SPROCKET 1
15 64733-35F00 RETAINER, SPROCKET DRUM 1
16 09262-32022 BEARING (32X65X17) 1
17 09285-39001 OIL SEAL (39X65X7) 1
18 64651-47H10 ABSORBER, HUB SHOCK
19 64511-04K00 SPROCKET, REAR (NT:44) 1
20 08319-3110A NUT
21 65110-04K00 TIRE, REAR, 190/50ZR17 M/C (73W)(DUNLOP) D214 M
22 43130-24A00 VALVE ASSY, WHEEL RIM (TR412) 1
    • SKU
      SKU22370
    • Weight
      0.5 lbs
  • SELECT ONE
    2 64731-35F10 SPACER, HUB BEARING 1, 3 09262-28052/62 BEARING (28X52X12), 4 09284-37001/2 OIL SEAL (37X52X8) 1, 5 69211-04K00 DISC, REAR BRAKE 1, 6 09106-08160 BOLT (8X21), 7 64162-04K00 RING, SPEED SENSOR RR(50T) 1, 8 07130-0512A BOLT, 9 64711-49G30 AXLE, REAR 1, 10 09159-25003 NUT, 11 09160-25070 WASHER (25.2X42X3.2) 1, 12 64741-35F00/10 SPACER, AXLE RH 1, 13 64751-47H00/10 SPACER, AXLE LH 1, 14 64610-04K00 DRUM, REAR SPROCKET 1, 15 64733-35F00 RETAINER, SPROCKET DRUM 1, 16 09262-32022/4 BEARING (32X65X17) 1, 17 09285-39001 OIL SEAL (39X65X7) 1, 18 64651-47H10 ABSORBER, HUB SHOCK, 19 64511-04K00 SPROCKET, REAR (NT:44) 1, 20 08319-3110A NUT, 22 43130-24A00 VALVE ASSY, WHEEL RIM (TR412) 1
