REAR TAIL LAMP GSXR1000 2017-25

REAR TAIL LAMP GSXR1000 2017-25

SKU: SKU22645
REAR TAIL LAMP GSXR 1000 2017-25

OR

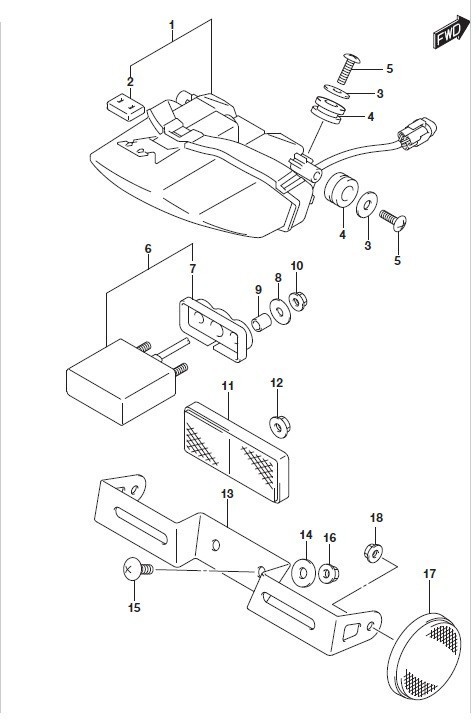

1 35710-17KA0 LAMP ASSY, REARCOMBINATION
2 35781-17K00 .CUSHION
3 09160-05045 WASHER (5.5X18X1)
4 09320-10054 CUSHION
5 03541-0516A SCREW
6 35910-17K00 LAMP ASSY, LICENSE
7 35913-17K00 .RUBBER
8 09160-05045 WASHER (5.5X18X1)
9 09180-06263 SPACER (6.5X9X9)
10 08316-1005A NUT
11 35970-07F01 REFLECTOR ASSY, RR
12 08316-1005A NUT
13 35927-17K00 BRACKET, LICENSE PLATE
14 09160-06151 WASHER (6.5X18X1)
15 02142-0616A SCREW
16 08316-1006A NUT
17 35970-14A20 REFLECTOR ASSY, REAR SIDE
18 08316-1005A NUT
    • SKU
      SKU22645
    • Weight
      2 lbs
  • OPTION
    1 35710-17KA0 LAMP ASSY, REARCOMBINATION, 2 35781-17K00 .CUSHION, 3 09160-05045 WASHER (5.5X18X1), 4 09320-10073 CUSHION, 5 03541-0516A SCREW, 6 35910-17K00 LAMP ASSY, LICENSE, 7 35913-17K00 .RUBBER, 8 09160-05045 WASHER (5.5X18X1), 9 09180-06263 SPACER (6.5X9X9), 10 08316-1005A NUT, 11 35970-07F01 REFLECTOR ASSY, RR, 12 08316-1005A NUT, 13 35927-17K00 BRACKET, LICENSE PLATE, 14 09160-06151 WASHER (6.5X18X1), 15 02142-0616A SCREW, 16 08316-1006A NUT, 17 35970-14A20 REFLECTOR ASSY, REAR SIDE, 18 08316-1005A NUT
