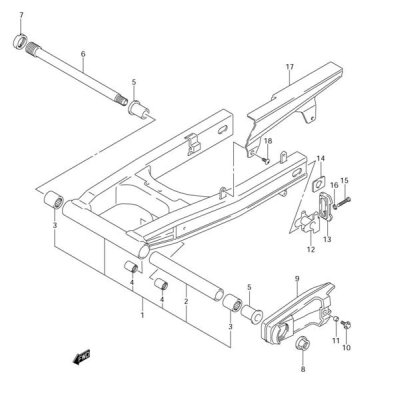

REAR SWING ARM DL650 2004-11 V STROM
SKU: SKU20791
REAR SWING ARM DL650 2004-11
2 SPACER 09180-20118
3 BEARING 09263-25059
4 BEARING CUSHION ROD 09263-17037
5 SPACER 61251-31E00
6 SHAFT 61211-06G00
7 NUT 61214-19F00
8 NUT 08319-31188
9 BUFFER 61273-27G00
10 BOLT 09116-06152
11 SPACER 09180-06283
12 ADJUSTER 61410-03F00
15 BOLT 09106-08119
16 WASHER 09164-08015
17 CASE CHAIN 61310-16G00
18 SCREW 09139-06083
- SELECT ONE#2 SPACER 09180-20118, #3 BEARING 09263-25073, #4 BEARING CUSHION ROD 09263-17053, #5 SPACER 61251-31E00, #7 NUT 61214-19F10, #8 NUT 08319-3118A, #9 BUFFER 61273-27G01, #10 BOLT 09116-06152, #11 SPACER 09180-06283, #12 ADJUSTER 61410-03F00, #15 BOLT 09106-08119, #16 WASHER 09164-08015, #17 CASE CHAIN 61310-16G00, #18 SCREW 09139-06083
