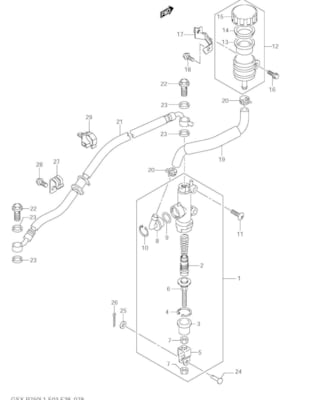

REAR MASTER CYLINDER GSXR750 2011-26
SKU: SKU22219
REAR MASTER CYLINDER GSXR 750 2011-26
1-1 2011-15 69600-47H10 CYLINDER ASSY, REAR MASTER 1
1-2 2016-26 69600-47H30 CYLINDER ASSY, REAR MASTER
2 69600-34810 .PISTON / CAP SET 1
3 69691-00A00 .BOOT 1
4 69665-47H00 .CIRCLIP 1
5 69692-44H00 .YOKE 1
6 69670-40A00 .ROD, PUSH 1
7 69693-05A00 .NUT
8 69672-00B20 .CONNECTOR 1
9 69686-34200 .O RING 1
10 69674-00B20 .CIRCLIP 1
11 09139-06125 SCREW (6X20)
12 69740-47H00 TANK ASSY, REAR RESERVOIR 1
13 69667-00B20 .DIAPHRAGM 1
14 69668-00B20 .PLATE 1
15 69669-47H00 .CAP 1
16 01547-0616A BOLT 1
17 69750-14J00 BRACKET, RR RESERVOIR TANK 1
18 01547-0612A BOLT 1
19 69730-14J00 HOSE, RESERVOIR TANK 1
20 09401-12404 CLIP 2
21 69480-14J00 HOSE, REAR BRAKE 1
22 09360-10062 UNION
23 09161-10009 WASHER (10X15X1.5)
24 09200-06068 PIN 1
25 08322-0106A WASHER 1
26 04111-2015A COTTER PIN 1
27 69268-21H00 CLAMP, RR BRAKE HOSE 1
28 01547-0612A BOLT 1
29 09403-17306 CLAMP
- SELECT ONE1-1 2011-15 69600-47H10 CYLINDER ASSY, REAR MASTER 1, 1-2 2016-26 69600-47H31 CYLINDER ASSY, REAR MASTER, 2 69600-34810 .PISTON / CAP SET 1, 3 69691-00A00 .BOOT 1, 4 69665-47H00 .CIRCLIP 1, 5 69692-44H00 .YOKE 1, 6 69670-40A00 .ROD, PUSH 1, 7 69693-05A00 .NUT, 8 69672-00B20 .CONNECTOR 1, 9 69686-34200 .O RING 1, 10 69674-00B20 .CIRCLIP 1, 11 09139-06125 SCREW (6X20), 12 69740-47H00 TANK ASSY, REAR RESERVOIR 1, 13 69667-00B20 .DIAPHRAGM 1, 14 69668-00B20 .PLATE 1, 15 69669-47H00 .CAP 1, 16 01547-0616A BOLT 1, 17 69750-14J00 BRACKET, RR RESERVOIR TANK 1, 18 01547-0612A BOLT 1, 19 69730-14J00 HOSE, RESERVOIR TANK 1, 20 09401-12404 CLIP 2, 21 69480-14J01 HOSE, REAR BRAKE 1, 22 09360-10062 UNION, 23 09161-10009 WASHER (10X15X1.5), 24 09200-06068 PIN 1, 25 08322-0106A WASHER 1, 26 04111-2015A COTTER PIN 1, 27 69268-21H00 CLAMP, RR BRAKE HOSE 1, 28 01547-0612A BOLT 1, 29 09403-17306 CLAMP
