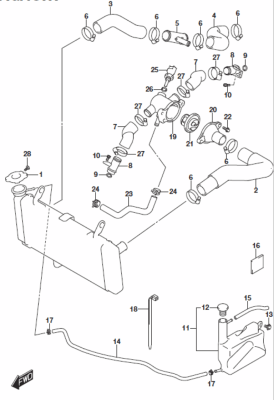

RADIATOR HOSE SV650 2017-26
SKU: SKU22494
RADIATOR HOSE SV 650 2017-26
1 17730-08D10 CAP, RADIATOR (1.1) 1
2 17851-44H00 HOSE, RADIATOR INLET
3 17852-44H00 HOSE, RADIATOR OUTLET NO.1 1
4 17854-18K00 HOSE, RADIATOR OUTLET NO.2 1
5 17881-18K00 PIPE, WATER HOSE THREE WAY
6 09402-35501 CLAMP
7 17853-19F00 HOSE, CONNECTOR INLET
8 17890-06G20 UNION, CONNECTOR HOSE
9 09280-18008 O RING (D:3.2,ID:17.8)
10 07130-0612A BOLT
11 17910-18K00 TANK ASSY, RESERVOIR 1
12 17931-02FA0 .CAP, RESERVOIR TANK 1
13 09111-06083 BOLT (6X12) 1
14 17981-18K00 HOSE, RESERVOIR TANK INLET 1
15 09352-50901-600 HOSE (5X9X600) L:600->180
16 63191-25C00 CUSHION, RESERVOIR TANK CUT AS REQUIRED
17 09401-08411 CLIP
18 09407-18402 CLAMP (L:165) 1
19 17662-02F11 CONNECTOR, THERMOSTAT INLET 1
20 17663-17G00 CAP, THERMOSTAT CONNECTOR 1
21 17670-06G60 THERMOSTAT, WATER 1
22 01547-0616A BOLT
23 17856-44H00 HOSE, CONNECTOR TO WATER PUMP 1
24 09401-12414 CLIP
25 13650-49X00 SENSOR, WATER TEMPERATURE 1
26 09168-12017 GASKET (12X17X1) 1
27 09402-28513 CLAMP
28 17733-03D10 SCREW 1
- OPTION1 17730-08D10 CAP, RADIATOR (1.1) 1, 2 17851-44H00 HOSE, RADIATOR INLET, 3 17852-44H00 HOSE, RADIATOR OUTLET NO.1 1, 4 17854-18K00 HOSE, RADIATOR OUTLET NO.2 1, 5 17881-18K00 PIPE, WATER HOSE THREE WAY, 6 09402-35501 CLAMP, 7 17853-19F00 HOSE, CONNECTOR INLET, 8 17890-06G20 UNION, CONNECTOR HOSE, 9 09280-18009 O RING (D:3.2,ID:17.8), 10 07130-0612A BOLT, 12 17931-02FA0 .CAP, RESERVOIR TANK 1, 13 09111-06083 BOLT (6X12) 1, 15 09352-50901-600 HOSE (5X9X600) L:600->180, 16 63191-25C00 CUSHION, RESERVOIR TANK CUT AS REQUIRED, 17 09401-08411 CLIP, 18 09407-18402 CLAMP (L:165) 1, 19 17662-02F11 CONNECTOR, THERMOSTAT INLET 1, 20 17663-17G00 CAP, THERMOSTAT CONNECTOR 1, 21 17670-06G61 THERMOSTAT, WATER 1, 22 01547-0616A BOLT, 23 17856-44H00 HOSE, CONNECTOR TO WATER PUMP 1, 24 09401-12414 CLIP, 25 13650-49X00 SENSOR, WATER TEMPERATURE 1, 26 09168-12017 GASKET (12X17X1) 1, 27 09402-28513 CLAMP, 28 17733-03D10 SCREW 1
