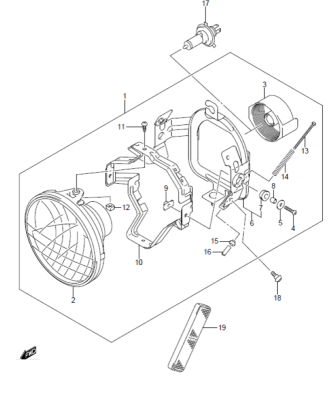

HEADLAMP C90 C90T 2013-18

1 35100-06J30/1-999 HEADLAMP ASSY

2 35121-10FB0 .UNIT 1

3 35174-19F00 .COVER, SOCKET 1

4 02122-0520A .SCREW

5 09160-05045 .WASHER (5.5X18X1)

6 35140-06J00 .BRACKET 1

7 35139-38A60 ..CUSHION

8 35133-45230 .SPACER

9 35155-10FA0 .NUT

10 35130-10FA0 .BRACKET 1

11 35181-19F00 .SCREW (5X16)

12 35135-45900 .NUT

13 35151-10FA0 .SCREW, ADJUSTER

14 35154-10FA0 .SPRING, ADJUSTER

15 35152-45600 .NUT

16 35158-10FA0 .COVER

17 09471-12060 BULB (12V,60/55W) 1

18 09111-06107 BOLT (6X12)

19 35950-22H20 REFLEX REFLECTOR ASSY, FR SID
