FUEL TANK MOUNTING HARDWARE GSX-S750 2015-16
SKU: SKU22133

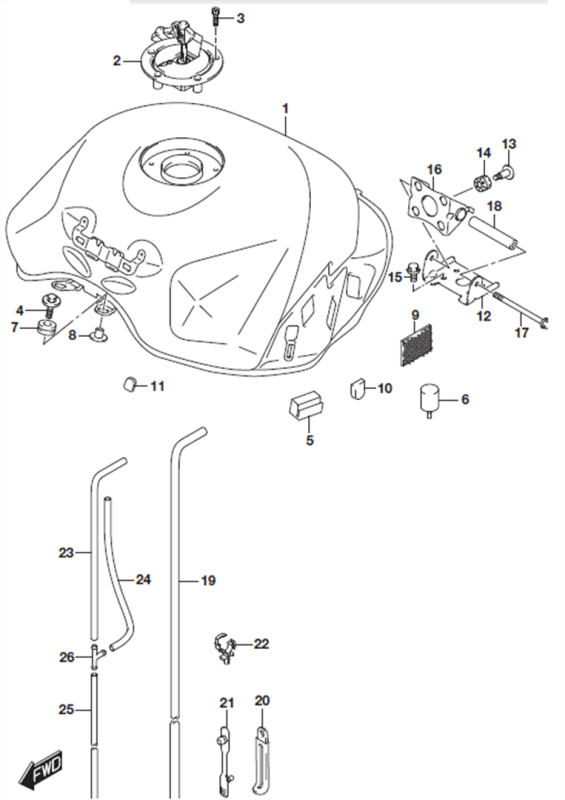

FUEL TANK MOUNTING HARDWARE
GSX-S 750 2015-16
2 44200-16850 CAP SET, FUEL TANK 1
3 09106-05017 BOLT (5X20) 3
4 01560-0625A BOLT 2
5 44541-08J00 CUSHION, FUEL TANK SIDE 2
6 44542-41G00 CUSHION, FUEL TANK REAR 2
7 44511-16G00 CUSHION, FUEL TANK FRONT 2
8 44512-16G00 SPACER, FUEL TANK FRONT 2
9 44572-13G00 FASTENER 4
10 44542-08J00 CUSHION, TANK COVER SIDE 2
11 44543-08J00 CUSHION, TANK COVER CENTER 2
12 44550-08J00 BRACKET, FUEL TANK REAR NO.2 1
13 09139-06191 SCREW (6X22) 4
14 09320-08071 CUSHION 4
15 01550-0612A BOLT 4
16 44530-41G01 BRACKET, FUEL TANK REAR 1
17 07120-0695A BOLT 1
18 44561-18G00 SPACER, FUEL TANK REAR 1
19 44423-08J01 HOSE, FUEL TANK DRAIN 1
20 09404-06433 CLAMP (L:80) 1
21 09407-05406 CLAMP (L:118) 1
22 09403-18307 CLAMP 2
23 44424-08J01 HOSE, BREATHER NO.1 1
24 44424-15H10 HOSE, BREATHER NO.3 1
25 09352-50823-600 HOSE (5X8.2X600) 1
26 09367-06007 3 WAY 1
3 09106-05017 BOLT (5X20) 3
4 01560-0625A BOLT 2
5 44541-08J00 CUSHION, FUEL TANK SIDE 2
6 44542-41G00 CUSHION, FUEL TANK REAR 2
7 44511-16G00 CUSHION, FUEL TANK FRONT 2
8 44512-16G00 SPACER, FUEL TANK FRONT 2
9 44572-13G00 FASTENER 4
10 44542-08J00 CUSHION, TANK COVER SIDE 2
11 44543-08J00 CUSHION, TANK COVER CENTER 2
12 44550-08J00 BRACKET, FUEL TANK REAR NO.2 1
13 09139-06191 SCREW (6X22) 4
14 09320-08071 CUSHION 4
15 01550-0612A BOLT 4
16 44530-41G01 BRACKET, FUEL TANK REAR 1
17 07120-0695A BOLT 1
18 44561-18G00 SPACER, FUEL TANK REAR 1
19 44423-08J01 HOSE, FUEL TANK DRAIN 1
20 09404-06433 CLAMP (L:80) 1
21 09407-05406 CLAMP (L:118) 1
22 09403-18307 CLAMP 2
23 44424-08J01 HOSE, BREATHER NO.1 1
24 44424-15H10 HOSE, BREATHER NO.3 1
25 09352-50823-600 HOSE (5X8.2X600) 1
26 09367-06007 3 WAY 1
- SELECT ONE2 44200-16850 CAP SET, FUEL TANK, 3 09106-05017 BOLT (5X20), 4 01560-0625A BOLT, 5 44541-08J00 CUSHION, FUEL TANK SIDE, 6 44542-41G00 CUSHION, FUEL TANK REAR, 7 44511-16G00 CUSHION, FUEL TANK FRONT, 8 44512-16G00 SPACER, FUEL TANK FRONT, 9 44572-13G00 FASTENER, 10 44542-08J00 CUSHION, TANK COVER SIDE, 12 44550-08J00 BRACKET, FUEL TANK REAR NO.2, 13 09139-06191 SCREW (6X22), 14 09320-08071 CUSHION, 15 01550-0612A BOLT, 16 44530-41G01 BRACKET, FUEL TANK REAR, 17 07120-0695A BOLT, 18 44561-18G00 SPACER, FUEL TANK REAR, 20 09404-06434 CLAMP (L:80), 22 09403-18307 CLAMP, 23 44424-08J01 HOSE, BREATHER NO.1, 24 44424-15H10 HOSE, BREATHER NO.3, 25 44421-13ER0 HOSE (5X8.2X600), 26 09367-06007 3 WAY
