FUEL PUMP GSX250R 2018-24

FUEL PUMP GSX250R 2018-24

SKU: SKU22673

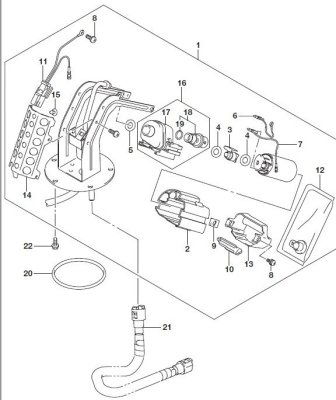

FUEL PUMP GSX 250R 2018-24

OR
1 15100-48H02 PUMP ASSY, FUEL
2 15111-18H00 .CUP
3 15112-05H00 .JOINT
4 15113-05H00 .O RING
5 15113-35F00 .O RING
6 15114-05H01 .WIRE, EARTH
7 15115-05H01 .WIRE, LEAD
8 15116-10F00 .SCREW
9 15117-05H00 .STOPPER
10 15118-18H00 .COVER, CUP
11 15246-18H01 .HARNESS, GAUGE
12 15420-48H11 .STRAINER
13 15426-48H01 .VESSEL
14 15581-48H00 .GUARD
15 15582-18H00 .STOPPER
16 15610-48H00 .REGULATOR ASSY, FUEL
17 15410-48H00 ..FILTER
18 15610-48H10 ..REGULATOR
19 15113-48H00 ...O RING
20 15201-48H00 O RING, FUEL PUMP
21 15810-48H00 HOSE, FUEL
22 01547-0612A BOLT
    • SKU
      SKU22673
    • Weight
      2.5 lbs
  • CHOOSE ONE
    1 15100-48H02 PUMP ASSY, FUEL, 2 15111-18H00 .CUP, 3 15112-05H00 .JOINT, 4 15113-05H00 .O RING, 5 15113-35F00 .O RING, 8 15116-10F00 .SCREW, 9 15117-05H00 .STOPPER, 10 15118-18H00 .COVER, CUP, 14 15581-48H00 .GUARD, 16 15610-48H00 .REGULATOR ASSY, FUEL, 20 15201-48H00 O RING, FUEL PUMP, 22 01547-0612A BOLT
