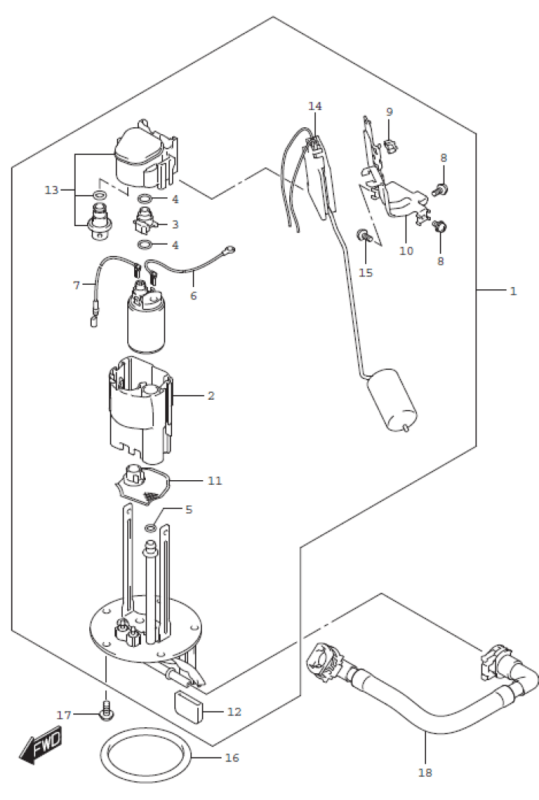

FUEL PUMP GSX-S1000F 2016-18

1 15100-04K00 PUMP ASSY, FUEL 1
2 15111-27G00 .CUP, RESERVOIR 1
3 15112-05H00 .JOINT 1
4 15113-05H00 .O RING
5 15113-35F00 .O RING 1
6 15114-14J00 .WIRE, EARTH 1
7 15115-08J00 .WIRE, LEAD 1
8 15116-10F00 .SCREW
9 15119-08J00 .SADDLE, EDGE 1
10 15181-04K00 .BRACKET, GAUGE 1
11 15420-31J00 .STRAINER 1
12 15583-18H00 .CAP, STAY 1
13 15610-14J00 .REGULATOR 1
14 34810-04K00 .GAUGE ASSY, FUEL LEVEL 1
15 15116-31J00 .SCREW
16 15201-35F00 O RING
17 07120-0612A BOLT
18 15810-04K00 HOSE, FUEL 1


Fuel Pumps not eligible for return or exchange.
