FRAME COVER S40 2005-16
SKU: SKU_18155

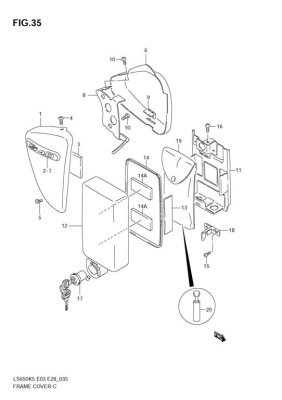

S40 2005-16 FRAME COVER
#1-1 BLACK RH 47100-24CA0-YAY
#1-2 2005 RED RH 47100-24CA0-YC3
#1-3 2006 SILVER RH 47100-24CA0-YDV UNPAINTED
#1-4 2006-7 RED RH 47100-24CA0-YHL UNPAINTED
#1-5 2007 WHITE RH 47100-24CA0-YC3
#1-6 2007 BLUE RH 47100-24CA0-YBA UNPAINTED
#1-7 2008 SILVER RH 47100-24CA0-YMD
#1-8 2009 WHITE RH 47100-24CA0-YPA
#1-9 2009 MAGENTA RH 47100-24CA0-YRH
#2 EMBLEM 68131-24CA0
#3 CUSHION 13719-84150
#4 SCREW 02142-0510B
#5 SCREW 02112-7516B
#6-1 BLACK LH 47200-24CA0-YAY
#6-2 2005 RED LH 47200-24CA0-YC3
#6-3 2006 SILVER LH 47200-24CA0-YDV UNPAINTED
#6-4 2006-7 RED LH 47200-24CA0-YHL
#6-5 2007 WHITE LH 47200-24CA0-YC3
#6-6 2007 BLUE LH 47200-24CA0-YBA UNPAINTED
#6-7 2008 SILVER LH 47200-24CA0-YMD
#6-8 2009 WHITE LH 47200-24CA0-YPA
#6-9 2009 MAGENTA LH 47200-24CA0-YRH
#8 BRACKET LH 47180-24B03
#9 CUSHION 47117-45000
#10 SCREW 02122-0612B
#11 HOLDER 47430-24B01
#12 COVER 47440-24B20
#15 02142-0510A/B SCREW
#17 LOCK ASSY 95700-24870/1
#18 47434-24B00 PLATE, TOOL HOLDER LOCK
#20 96220-24B00 GAUGE ASSY, TENSION
**Emblem/decals final sale items. Parts marked unpainted no longer come painted from the factory.
- SELECT ONE#1-1 BLACK RH 47100-24CA1-YAY, #2 EMBLEM 68131-24CA1, #3 CUSHION 13719-84150, #4 SCREW 02142-0510B, #5 SCREW 02112-7516B, #6-1 BLACK LH 47200-24CA1-YAY, #6-4 2006-7 RED LH 47200-24CA0-YHL, #6-8 2009 WHITE LH 47200-24CA0-YPA, #8 BRACKET LH 47180-24B03, #9 CUSHION 47117-45000, #10 SCREW 02122-0612B, #11 HOLDER 47430-24B01, #12 2005-16 COVER 47440-24B20, #15 02142-0510B SCREW, #17 LOCK ASSY 95700-24871, #18 47434-24B00 PLATE, TOOL HOLDER LOCK, #19 09800-21102 TOOL ASSY, #20 96220-24B00 GAUGE ASSY, TENSION
