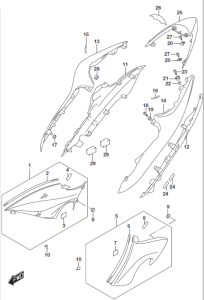

FRAME BODY COVER MOUNTING HARDWARE GSX-S1000 2016-18

1 47531-04K00 COVER, FRAME BODY INNER RH 1
2 47570-04K00 COVER ASSY, INTAKE RH
3 68111-47HA0 .EMBLEM,S
4-1 47533-04K00-PGZ COVER, FRAME BODY LOWER RH (GRAY) FOR PGZ
4-2 47533-04K00-YYG COVER, FRAME BODY LOWER RH (RED) FOR AV4
5 47541-04K00 COVER, FRAME BODY INNER LH
6 47580-04K00 COVER ASSY, INTAKE LH
7 68111-47HA0 .EMBLEM,S
8-1 47543-04K00-PGZ COVER, FRAME BODY LOWER LH (GRAY) FOR PGZ
8-2 47543-04K00-YYG COVER, FRAME BODY LOWER LH (RED) FOR AV4
9 09139-05064 SCREW (5X13)
10 94479-35F00 CLIP
11 47539-04K00 BRACKET, FRAME BODY COVER
12 09320-08018 CUSHION
13 01547-0612B BOLT
14 09321-06013 CUSHION
15 09320-06504 CUSHION
16 09329-18001 CUSHION
17 03541-0516A SCREW
18 09148-05052 NUT
19-1 47510-04K00-PGZ COVER, FRAME BODY RH (GRAY) FOR PGZ
19-2 47510-04K00-YVB COVER, FRAME BODY RH (BLACK) FOR AV4
20-1 68131-04K00-A76 .EMBLEM, FRAME BODY COVER FOR PGZ
20-2 68131-04K00-A77 .EMBLEM, FRAME BODY COVER FOR AV4
21-1 47520-04K00-PGZ COVER, FRAME BODY LH (GRAY) FOR PGZ
21-2 47520-04K00-YVB COVER, FRAME BODY LH (BLACK) FOR AV4
22-1 68131-04K00-A76 .EMBLEM, FRAME BODY COVER FOR PGZ
22-2 68131-04K00-A77 .EMBLEM, FRAME BODY COVER FOR AV4

SPECIAL NOTE COLOR : AV4=YVB(BLACK),YYG(RED)
