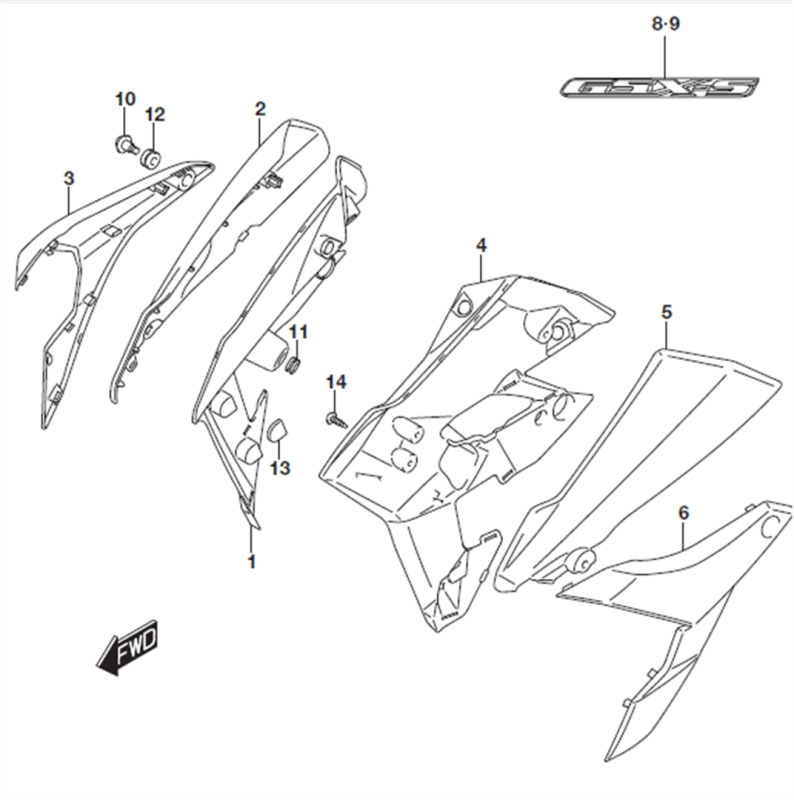

FRAME BODY COVER GSX-S750 2015-16

1 47531-08J00 COVER, FRAME BODY INNER RH 1

2-1 2015 47532-08J00-YKV COVER, FRAME BODY RH (BLACK) 1 FOR YKV

2-2 2015-16 47532-08J00-YWW COVER, FRAME BODY RH (WHITE) 1 FOR AJX

3-1 2015-16 47533-08J00-PGZ COVER, FRAME BODY LOWER RH (GRAY) 1

3-2 2015 Z MODEL 47533-08J00-YSF COVER, FRAME BODY LOWER RH (BLUE)

4 47541-08J00 COVER, FRAME BODY INNER LH 1

5-1 2015 47542-08J00-YKV COVER, FRAME BODY LH (BLACK) 1 FOR YKV

5-2 2015-16 47542-08J00-YWW COVER, FRAME BODY LH (WHITE) 1 FOR AJX

6-1 2015-16 47543-08J00-PGZ COVER, FRAME BODY LOWER LH (GRAY) 1

6-2 2015 Z MODEL 47543-08J00-YSF COVER, FRAME BODY LOWER LH (BLUE)

7 68111-47HA0 EMBLEM, "S" 2

8-1 2015 68661-08J20-A68 EMBLEM, "GSX-S" RH (RED/BLACK FOR YKV

8-2 2015 68661-08J20-A69 EMBLEM, "GSX-S" RH FOR AJX

8-3 2015 GSX-S750Z 68661-08J20-A69 EMBLEM, GSXS RH

8-4 2016 68661-08J20-A68 EMBLEM, "GSX-S" RH (RED/BLACK FOR YKV

8-5 2016 68661-08J20-A69 EMBLEM, "GSX-S" RH FOR AJX

8-6 2016 68661-08J40-A89 EMBLEM, "GSX-S" RH FOR YSF

9-1 2015 68671-08J20-A68 EMBLEM, "GSX-S" LH (RED/BLACK FOR YKV

9-2 2015 68671-08J20-A69 EMBLEM, "GSX-S" LH FOR AJX

9-3 2015 GSX-S750Z 68671-08J20-A69 EMBLEM, GSXS LH

9-4 2016 68671-08J20-A68 EMBLEM, "GSX-S" LH (RED/BLACK FOR YKV

9-5 2016 68671-08J20-A69 EMBLEM, "GSX-S" LH FOR AJX

9-6 2016 68671-08J40-A89 EMBLEM, "GSX-S" LH FOR YSF

10 09139-06190 BOLT (6X20) 4

11 09320-08028 CUSHION 2

12 09320-09016 CUSHION 6

13 09329-18001 CUSHION 4

14 03541-0516A SCREW 6
