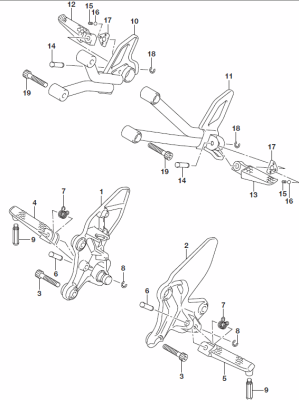

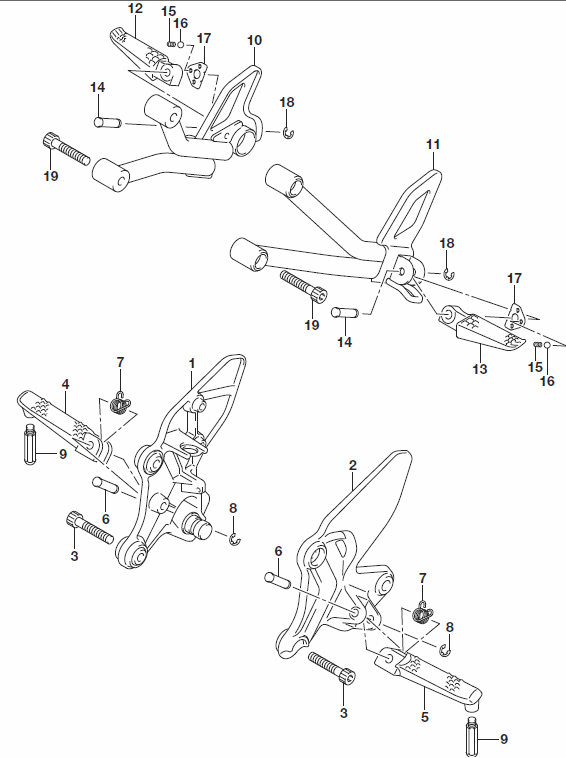

FOOTREST SV650 2017-26

SKU: SKU22501

FOOTREST SV 650/A/XA 2017-26

1-1 43510-18K00 BRACKET, FRONT FOOTREST RH

1-2 SV650A/XA 43510-18K10 BRACKET,FOOTREST RH

2-1 43521-18K00 BRACKET, FRONT FOOTREST LH

2-2 SV650A/XA 43521-18K10 BRACKET,FOOTREST LH

3 09106-08186 BOLT (8X23)

4-1 43516-18K00 BAR, FOOTREST RH

4-2 SV650A/XA 43516-18K10 BAR,FRONT FOOTREST RH

5-1 43526-18K00 BAR, FOOTREST LH

5-2 SV650A/XA 43526-18K10 BAR,FRONT FOOTREST LH

6 09208-08019 PIN

7 09448-14046 SPRING

8 08332-1106A E RING

9-1 2017-18 43576-48B30 BOLT, BANK SENSOR

9-2 2019-26 43576-48B20 BOLT, BANK SENSOR

10 43810-18K00 BRACKET, PILLION FOOTREST RH 1

11 43820-18K00 BRACKET, PILLION FOOTREST LH 1

12-1 43611-37H20 BAR, PILLION FOOTREST RH

12-2 SV650A/XA 43611-37H30 BAR, PILLION FOOTREST RH

13-1 43621-37H20 BAR, PILLION FOOTREST LH

13-2 SV650A/XA 43621-37H30 BAR, PILLION FOOTREST LH

14 09208-08017 PIN

15 09440-05005 SPRING

16 06111-07004 BALL

17 43816-01H10 PLATE

18 08332-1106A E RING

19 09106-08074 BOLT (8X40)

- SKU
  SKU22501
- Weight
  0.6 lbs
OPTION
1-1 43510-18K00 BRACKET, FRONT FOOTREST RH 1, 1-2 SV650A/XA 43510-18K10 BRACKET,FOOTREST RH, 2 43521-18K00 BRACKET, FRONT FOOTREST LH, 2-2 SV650A/XA 43521-18K10 BRACKET,FOOTREST LH, 3 09106-08186 BOLT (8X23), 4 43516-18K20 BAR, FOOTREST RH 1, 5 43526-18K20 BAR, FOOTREST LH 1, 5-2 SV650A/XA 43526-18K30 BAR,FRONT FOOTREST LH, 6 09208-08019 PIN, 7 09448-14046 SPRING, 8 08332-1106A E RING, 9-1 2017-18 43576-48B30 BOLT, BANK SENSOR, 9-2 2019-26 43576-48B20 BOLT, BANK SENSOR, 10 43810-18K00 BRACKET, PILLION FOOTREST RH 1, 11 43820-18K00 BRACKET, PILLION FOOTREST LH 1, 12 43611-37H20 BAR, PILLION FOOTREST RH 1, 12-2 SV650A/XA 43611-37H30 BAR, PILLION FOOTREST RH, 13 43621-37H20 BAR, PILLION FOOTREST LH 1, 13-2 SV650A/XA 43621-37H30 BAR, PILLION FOOTREST LH, 14 09208-08017 PIN, 15 09440-05005 SPRING, 16 06111-07004 BALL, 17 43816-01H10 PLATE, 18 08332-1106A E RING, 19 09106-08074 BOLT (8X40)

HANDLEBAR LEVERS SV650 2017-26
Product amount in cartSorry, we only have 100 of that item available

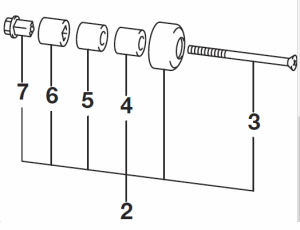

HANDLEBAR BALANCER SV650 2017-25
