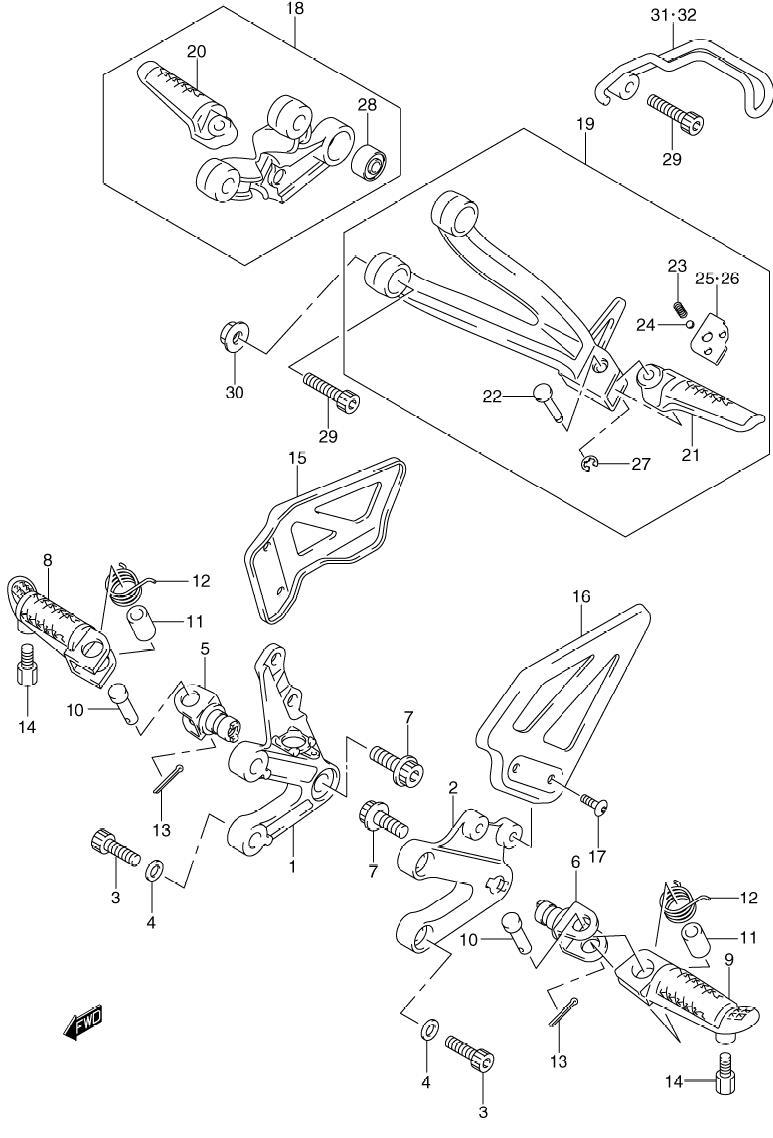

FOOT REST PARTS GSXR 750 2000-03

FOOT REST PARTS GSXR 750 2000-03

SKU: SKU_19165
FOOT REST PARTS GSXR 750 2000-03

OR
#1 BRACKET RH 43511-35F00
#2 BRACKET LH 43521-35F00
#3 BOLT 43512-35F00
#4 2000-01 WASHER 09164-08018
#4 2002-03 WASHER 09164-08022
#5 HOLDER RH 43530-35F10
#6 HOLDER LH 43540-35F10
#7 BOLT 09106-10064
#8 BAR FRONT RH 43516-35F00
#9 BAR FRONT LH 43526-35F00
#10 PIN 09200-08057
#11 SPACER 09180-08149
#12 SPRING 09448-18022
#13 COTTER PIN 04111-25158
#14 BOLT 43576-07D01
#15 GUARD RH 43571-35F01
#16 GUARD LH 43576-35F01
#17 2000-01 BOLT LH 43577-35F00
#17 2002-03 BOLT LH 09139-05067
#18 FOOTREST PILLION RH 43600-35F00
#19 FOOTREST PILLION LH 43700-35F00
#20 BAR PILLION RH 43611-35F01
#21 BAR PILLION LH 43621-35F01
#22 PIN 87259-85510
#23 SPRING 09440-05005
#24 BALL 06111-07004
#25 PLATE RH 43816-33E21
#26 PLATE LH 43826-33E22
#27 ERING 08332-11043
#28 BUSH 09319-08028
#29 BOLT 09106-08149
#30 NUT 08319-31083
#31 BRACKET RH 43630-35F10
#32 BRACKET LH 43730-35F10
    • SKU
      SKU_19165
    • Weight
      6 lbs
  • CHOSE ONE
    #1 BRACKET RH 43511-35F00, #2 BRACKET LH 43521-35F00, #3 BOLT 43512-35F00, #4 2000-01 WASHER 09164-08018, #4 2002-03 WASHER 09164-08022, #5 HOLDER RH 43530-35F10, #6 HOLDER LH 43540-35F10, #7 BOLT 09106-10064, #8 BAR FRONT RH 43516-35F00, #9 BAR FRONT LH 43526-35F00, #10 PIN 09200-08057, #11 SPACER 09180-08149, #12 SPRING 09448-18022, #13 COTTER PIN 04111-25158, #14 BOLT 43576-07D01, #16 GUARD LH 43576-35F01, #17 2002-03 BOLT LH 09139-05067, #17 2000-01 BOLT LH 43577-35F00/10, #18 FOOTREST PILLION RH 43600-35F00, #20 BAR PILLION RH 43611-35F01, #21 BAR PILLION LH 43621-35F01, #22 PIN 87259-85510, #23 SPRING 09440-05005, #24 BALL 06111-07004, #25 PLATE RH 43816-33E21, #26 PLATE LH 43826-33E22, #27 ERING 08332-11043, #28 BUSH 09319-08028/52, #29 BOLT 09106-08170, #30 NUT 08319-31083, #31 BRACKET RH 43630-35F10, #32 BRACKET LH 43730-35F10
