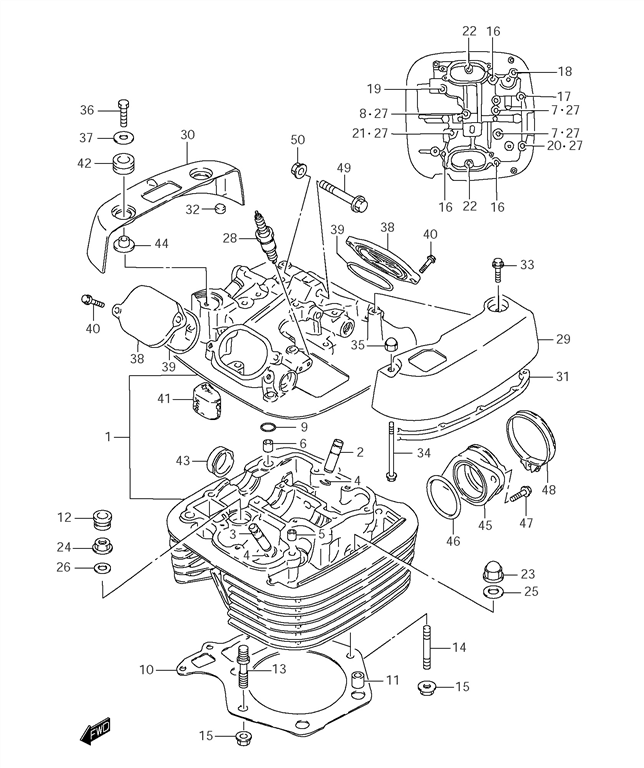

CYLINDER HEAD LS650 S40 2005-19

1 11100-24B10 HEAD ASSY, CYLINDER 1

2 11115-44B70 GUIDE, VALVE IN (OS:0.3) 2 OPT

3 11115-37470 GUIDE, VALVE EX (OS:0.3) 2 OPT

4 09381-10003 .CIRCLIP 4

5 09206-08001 .PIN 1

6 09206-11004 .PIN 1

7 09103-06064 .BOLT (6X60) 2

8 09103-06103 .BOLT (6X70) 1

9 11178-24B00 O RING, CYLINDER HEAD COVER 1

10 11141-24B03 GASKET, CYLINDER HEAD 1

11 04211-13189 PIN 2

12 11145-37401 CAP, HEAD SEAL 1

13 09108-08205 STUD BOLT (M12/8) 1

14 09108-08206 STUD BOLT 1

15 08316-1008B NUT 2

16 09103-06026 BOLT (6X40) 3

17 09103-06033 BOLT (6X125) 1

18 09103-06052 BOLT (6X115) 1

19 09103-06064 BOLT (6X60) 1

20 09103-06085 BOLT (6X130) 1

21 09103-06102 BOLT (6X55) 1

22 01550-0625B BOLT (GREEN) 2

23 09159-09003 NUT 3

24 09159-09004 NUT 1

25 09168-10031 GASKET 3

26 09168-10031 GASKET 1

27 09168-06023 GASKET 5

29 2005-15 11171-24B04 CAP, HEAD COVER LH 1

30 2005-15 11172-24B04 CAP, HEAD COVER RH 1

31 11272-24B01 CUSHION, HEAD COVER CAP LH 1

32 11273-24B00 CUSHION, HEAD COVER CAP 3

33 01550-06207 BOLT 1

34 01550-0665B BOLT 1

35 08313-20067 NUT 1

36 01500-06257 BOLT 2

37 09160-06134 WASHER 2

38 11175-24B10 CAP, INSPECTION 2

39 09280-60004 O RING (D:2.4,ID:23.0) 2

40 01550-0620B BOLT 4

41 11186-24B02 SEPARATOR, OIL 1

42 09320-13015 CUSHION 2

43 09241-30008 PLUG, CYLINDER HEAD 1

44 09301-06007 BUSH 2

45 13101-14A10 PIPE, INTAKE 1

46 09280-46002 .O RING (D:2.4,ID:45.7) 1

47 02112-1620B SCREW 2

48 09402-58208 CLAMP, INTAKE PIPE 1

49 09103-08170 BOLT (8X55) 1

50 08319-3108A NUT

All parts Sold Each
