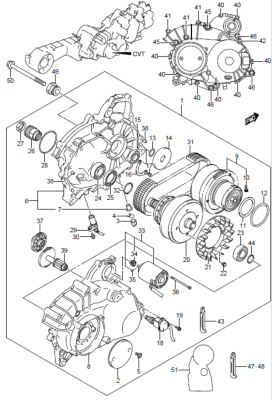

CVT AN650Z 2013-17

CVT AN650Z 2013-17

SKU: SKU22456

CVT AN650 2013-17


OR

1 21000-10832/3 UNIT ASSY, CVT 1

2 11388-10G00 .FILTER, BELT COOLING 1

3 13872-00110 .CAP, DRAIN 1

4 09401-13409 .CLIP 1

5 09116-06182 .BOLT (6X20)

6 21910-10G01 .CASE, CVT 1

7 09364-12002 ..UNION 1

8 21921-10G00 .COVER, CVT 1

9 21070-10810 .PULLEY ASSY, PRIMARY 1

10 21748-10G20 ..BOLT, SHAFT STOPPER 1

11 21746-10G00 .SHIM SET, PRIMARY PULLEY T:0.12/0.32/0.52/ 1.12/1.32

12 21747-10G00 .O RING, PRIMARY PULLEY RH 1

13 09280-21014 .O RING (D:1.2,ID:20.8) 1

14 21757-10G00 .SEAL, PRIMARY DUST 1

15 21751-10G00 .BEARING, PRIMARY PULLEY LH

16 21753-10G00 .RETAINER, PRIMARY BEARING LH

17 21754-10G00 .SCREW, PULLEY BEARING

18 26142-78G90 .SENSOR ASSY, PULLEY POSITION

19 24833-58E90 .BOLT, PULLEY POSITION SENSOR

20 21081-10G00 .PULLEY ASSY, SECONDARY 1

21 21815-10G00 .FAN, SEC FIXED PULLEY 1

22 21816-10G00 .BOLT, FAN PULLEY

23 21817-10G00 .BEARING, SECONDARY RH 1

24 21851-10G00 .BEARING, SECONDARY LH 1

25 21852-10G10 .SEAL, SECONDARY PULLEY 1

26 21855-10G00 .ADAPTER, SECONDARY FIXED 1

27 21856-10G00 .NUT, SECONDARY ADAPTER 1

28 21916-10G00 .O RING, CVT CASE 1

29 21860-10G00 .SENSOR ASSY, SECONDARY 1

30 24832-78G90 .BOLT, SECONDARY SENSOR 1

31 27601-10G00 .V BELT, DRIVE 1

32 21853-10G00 .COLLAR, SECONDARY PULLEY ADP 1

33 21076-10G01 .MOTOR ASSY CVT 1

34 25112-78G90 ..GEAR, ACTR DRIVE

35 25113-58E90 ..PIN, ACTR DRIVE 1

36 24834-58E90 .BOLT, CVT MOTOR

37 21077-10G00 .GEAR ASSY, ACTUATOR COUNTER 1

38 21925-10G00 .PIN, CVT COVER

39 21078-10G00 .GEAR ASSY, ACTR IDLER 1

40 21931-10G00 .BOLT, CVT COVER (L:30)

41 21932-10G00 .BOLT, CVT COVER (L:70)

42 21933-10G00 .BOLT, CVT COVER (L:90) 1

43 09404-08205 .CLAMP (L:45) 1

44 21818-10G00 .RING SECONDARY PULLEY 1

45 09103-10119 BOLT (10X140)

46 09103-10318 BOLT (10X110)

47 09404-06429 CLAMP (L:45) 1

48 09404-06433 CLAMP (L:80)

49 21282-10G00 ADAPTER, PRIMARY SHAFT 1

50 09103-12077 BOLT (12X130) 1

51 21001-26J00 CVT, HEAT GUARD 1

    • SKU
      SKU22456
    • Weight
      4.9 lbs
    • Dimensions (L x W x H)
      5 x 10 x 3 inches
  • SELECT ONE
    1 21000-10834 UNIT ASSY, CVT 1, 2 11388-10G00 .FILTER, BELT COOLING 1, 3 13872-00111 .CAP, DRAIN 1, 4 09401-13409 .CLIP 1, 5 09116-06182 .BOLT (6X20), 7 09364-12002 ..UNION 1, 9 21070-10811 .PULLEY ASSY, PRIMARY 1, 10 21748-10G20 ..BOLT, SHAFT STOPPER 1, 11 21746-10G00 .SHIM SET, PRIMARY PULLEY T:0.12/0.32/0.52/ 1.12/1.32, 12 21747-10G00 .O RING, PRIMARY PULLEY RH 1, 13 09280-21014 .O RING (D:1.2,ID:20.8) 1, 14 21757-10G00 .SEAL, PRIMARY DUST 1, 15 21751-10G00 .BEARING, PRIMARY PULLEY LH, 16 21753-10G00 .RETAINER, PRIMARY BEARING LH 1, 18 26142-78G91 .SENSOR ASSY, PULLEY POSITION 1, 20 21081-10G00 .PULLEY ASSY, SECONDARY 1, 22 21816-10G00 .BOLT, FAN PULLEY, 23 21817-10G00 .BEARING, SECONDARY RH 1, 24 21851-10G00 .BEARING, SECONDARY LH 1, 25 21852-10G10 .SEAL, SECONDARY PULLEY 1, 27 21856-10G00 .NUT, SECONDARY ADAPTER 1, 28 21916-10G00 .O RING, CVT CASE 1, 29 21860-10G00 .SENSOR ASSY, SECONDARY 1, 31 27601-10G00 .V BELT, DRIVE 1, 32 21853-10G00 .COLLAR, SECONDARY PULLEY ADP 1, 33 21076-10G02 .MOTOR ASSY CVT 1, 34 25112-78G90 ..GEAR, ACTR DRIVE, 35 25113-58E90 ..PIN, ACTR DRIVE 1, 37 21077-10G00 .GEAR ASSY, ACTUATOR COUNTER 1, 38 21925-10G00 .PIN, CVT COVER, 39 21078-10G00 .GEAR ASSY, ACTR IDLER 1, 40 21931-10G00 .BOLT, CVT COVER (L:30), 43 09404-08205 .CLAMP (L:45) 1, 44 21818-10G00 .RING SECONDARY PULLEY 1, 45 09103-10119 BOLT (10X140), 46 09103-10318 BOLT (10X110), 47 09404-06429/32 CLAMP (L:45) 1, 48 09404-06433 CLAMP (L:80), 49 21282-10G00 ADAPTER, PRIMARY SHAFT 1, 50 09103-12077 BOLT (12X130) 1
